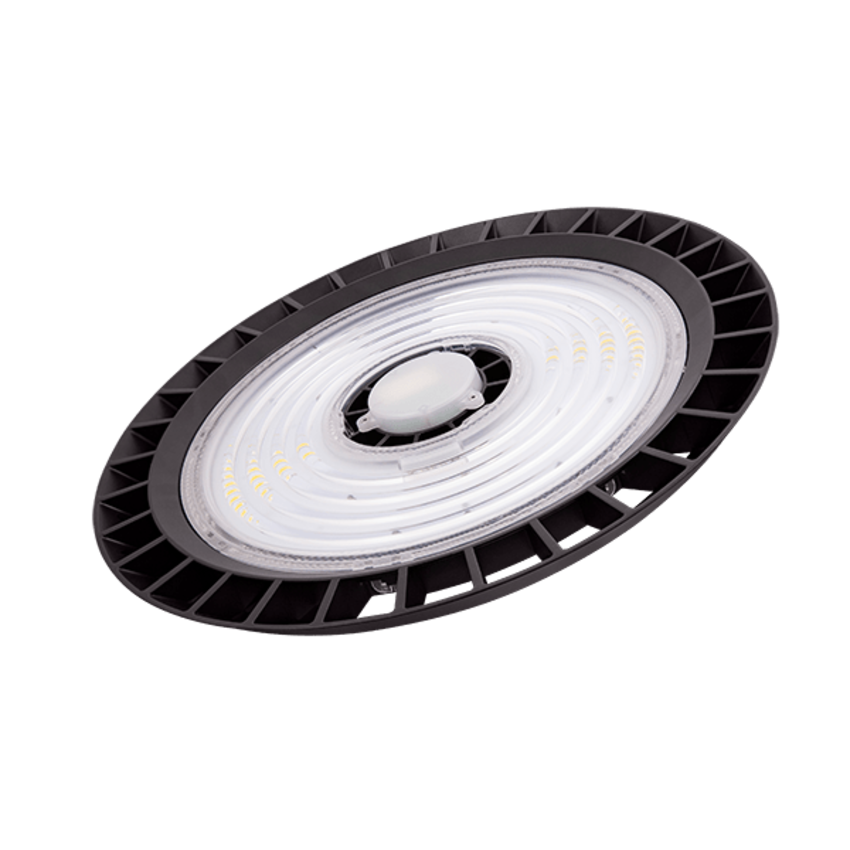

Ovia OV100100S Hion 100W LED 1-10V Dimmable Highbay With Microwave - IP65 - 4000K - Black

Product CodeOV100100S

0 Reviews

Write Review

View The Range

£170.24 inc. VAT

£141.86 exc. VAT

Ovia's INCEPTOR® Hion range of Highbay lighting to suit a variety of industrial spaces. General Information Dimensions: 342mm Diameter x 157mm (D) (With Hook) Materials Body: Powde ... Read More

Quantity

Total

£170.24 inc. VAT

Add to Cart

Ovia OV100100S Hion 100W LED 1-10V Dimmable Highbay With Microwave - IP65 - 4000K - Black Description

Ovia's INCEPTOR® Hion range of Highbay lighting to suit a variety of industrial spaces.

General Information

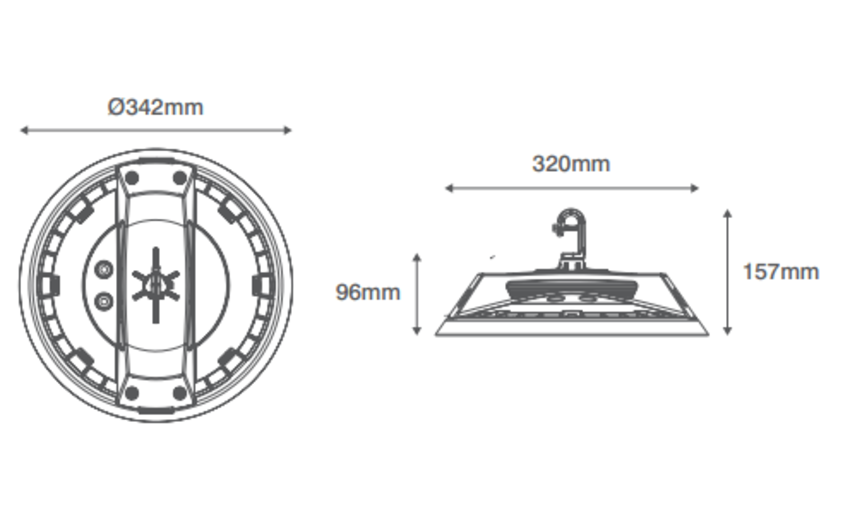

Dimensions: 342mm Diameter x 157mm (D) (With Hook)
Materials Body: Powdercoated Aluminium. Diffuser: Polycarbonate.
Finish: Black (RAL 9004)
Product Weight: 3.87Kg
Dimmable: Yes - Via the microwave sensor and remote
Ingress Protection IP65
IK Rating IK10
Hook Thread: G1/2 x 19.8mm
Warranty 6 Years

Supply & Power

Input Voltage & Frequency 100-277V~ 50/60Hz
Electrical Safety Class I
LED Wattage 100W
Circuit Wattage 100W
Input Current 900mA
Inrush Current 29.2A (640μs)
Power Factor >=0.95
Ambient Temperature (Ta) -40°C - +45°C
Critical Temperature >65°C @25°C
Input Mains Cable: 3 x 1mm² H05-RNF (3 Metres)

Luminaire Output

Colour Temperature 4000K
CRI 70
Typical Luminous Flux 14600lm
Efficacy 141lm/W
Beam Angle 90°
LED Lifetime (L70) 54,000 Hours

Microwave Sensor Information

Mounting Height: 15 Metres Maximum
Sensor Detection Range: 15 Metres x 12 Metres (Ceiling Mounted), 20 Metres (Wall Mounted)
Remote Control: OVCGHBIRR required to adjust settings below**
**Detection Range: 25%, 50%, 75%, 100%
**Hold Time: 5s, 30s, 1min, 3min, 5min, 10min, 20 min, 30min
**Daylight Threshold: 2Lux, 10Lux, 30Lux, 50Lux, 80Lux, 120Lux, Disable
**Standby Period: 0s, 10s, 30s, 1min, 5min, 10min, 30min, ∞+
**Standyby Dimming Level: 10%, 20%, 30%, 50%
Default Setting (When Supplied): The microwave sensor is disabled allowing for manual ON and OFF operation.

Accessories

OVWB1092 Bracket For 100W & 150W Inceptor® Hion Highbay Fittings

OVCGHBIRR Remote Control For Inceptor® Hion Microwave Fittings
