Ovia OV100100WHS Hion 100W LED 1-10V Dimmable Highbay With Microwave - IP65 - 4000K - White
Product CodeOV100100WHS
£122.48 inc. VAT
£102.07 exc. VAT
Ovia's INCEPTOR® Hion range of Highbay lighting to suit a variety of industrial spaces. General Information Dimensions: 342mm Diameter x 157mm (D) (With Hook) Materials Body: Powde ... Read More

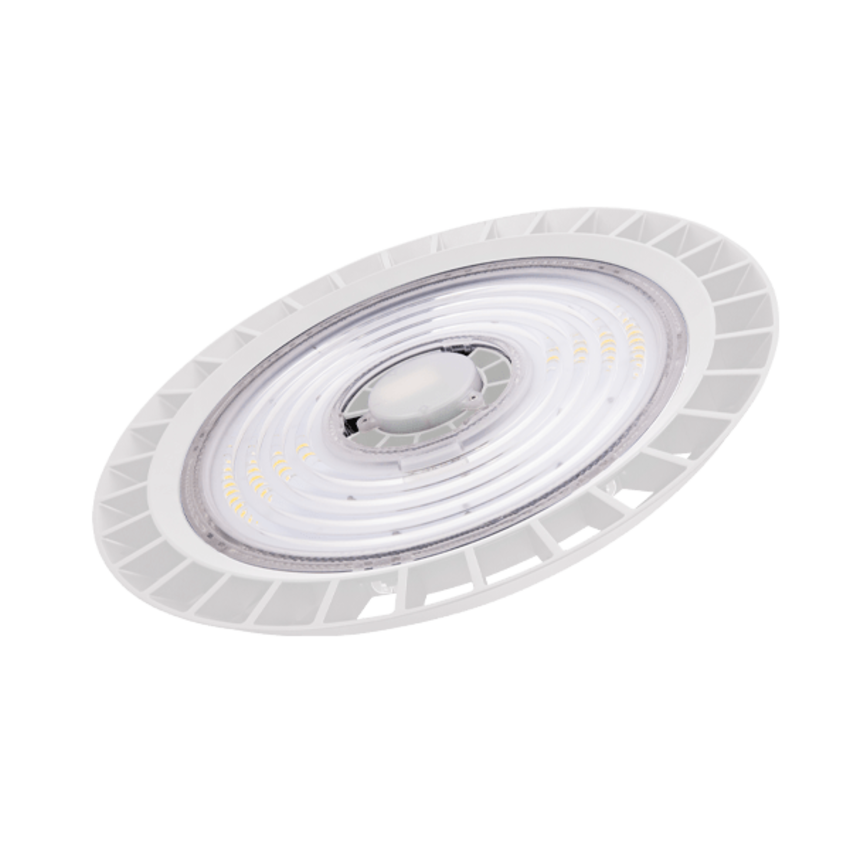

Ovia OV100100WHS Hion 100W LED 1-10V Dimmable Highbay With Microwave - IP65 - 4000K - White Description
Ovia's INCEPTOR® Hion range of Highbay lighting to suit a variety of industrial spaces.
General Information

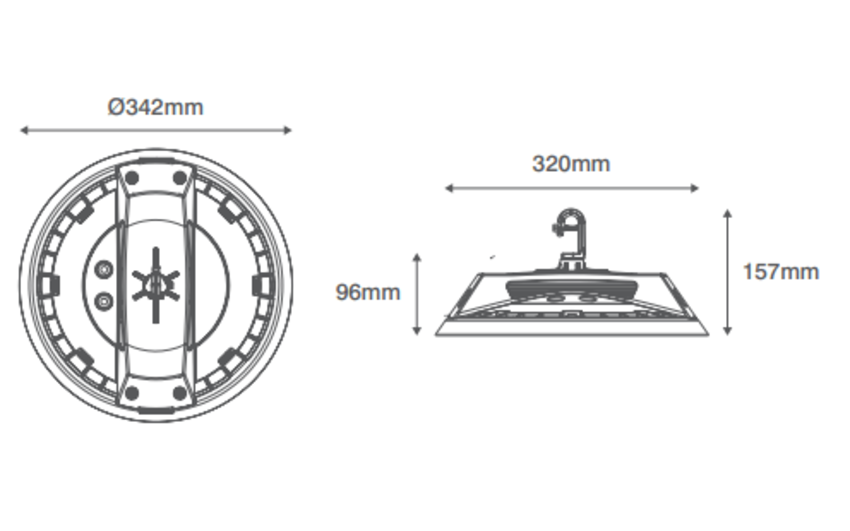

- Dimensions: 342mm Diameter x 157mm (D) (With Hook)
- Materials Body: Powdercoated Aluminium. Diffuser: Polycarbonate.
- Finish: White (RAL 9010)
- Product Weight: 3.87Kg
- Dimmable: Yes - Via the microwave sensor and remote
- Ingress Protection IP65
- IK Rating IK10
- Hook Thread: G1/2 x 19.8mm
- Warranty 6 Years
Supply & Power
- Input Voltage & Frequency 100-277V~ 50/60Hz
- Electrical Safety Class I
- LED Wattage 100W
- Circuit Wattage 100W
- Input Current 900mA
- Inrush Current 29.2A (640μs)
- Power Factor >=0.95
- Ambient Temperature (Ta) -40°C - +45°C
- Critical Temperature >65°C @25°C
- Input Mains Cable: 3 x 1mm² H05-RNF (3 Metres)
Luminaire Output
- Colour Temperature 4000K
- CRI 70
- Typical Luminous Flux 14600lm
- Efficacy 141lm/W
- Beam Angle 90°
- LED Lifetime (L70) 54,000 Hours
Microwave Sensor Information
- Mounting Height: 15 Metres Maximum
- Sensor Detection Range: 15 Metres x 12 Metres (Ceiling Mounted), 20 Metres (Wall Mounted)
- Remote Control: OVCGHBIRR required to adjust settings below**
- **Detection Range: 25%, 50%, 75%, 100%
- **Hold Time: 5s, 30s, 1min, 3min, 5min, 10min, 20 min, 30min
- **Daylight Threshold: 2Lux, 10Lux, 30Lux, 50Lux, 80Lux, 120Lux, Disable
- **Standby Period: 0s, 10s, 30s, 1min, 5min, 10min, 30min, ∞+
- **Standyby Dimming Level: 10%, 20%, 30%, 50%
- Default Setting (When Supplied): The microwave sensor is disabled allowing for manual ON and OFF operation.
Accessories
OVWB1092WH White Bracket For 100W & 150W Inceptor® Hion Highbay Fittings
OVCGHBIRR Remote Control For Inceptor® Hion Microwave Fittings
