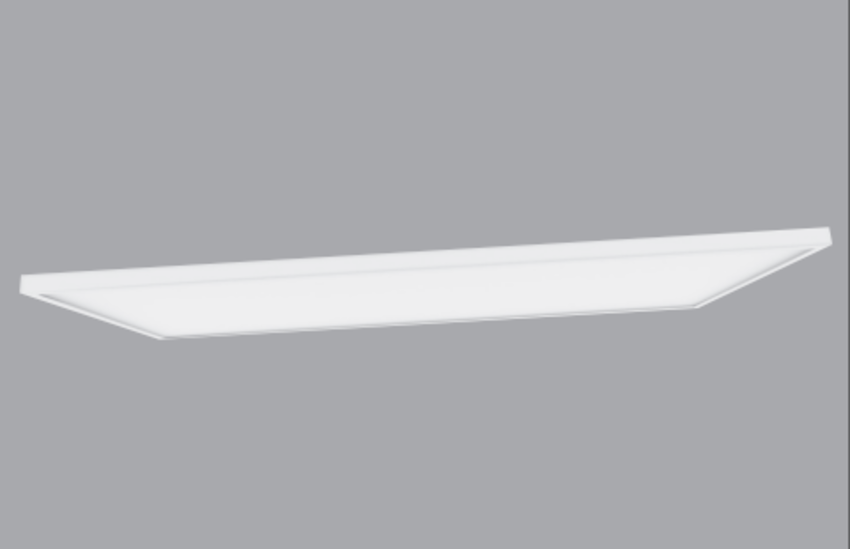

Ovia OV75503CWMF Inceptor 50W 1200mm x 600mm 3 in 1 Dimmable LED Panel - 4000K - White

Ovia provides an extensive range of panel lighting and downlights for your commercial environment. They come with a range of multiple features and benefits, some including different colour temperature options.

The Inceptor® Slate, Edge Lit LED Panel Light.

General Information

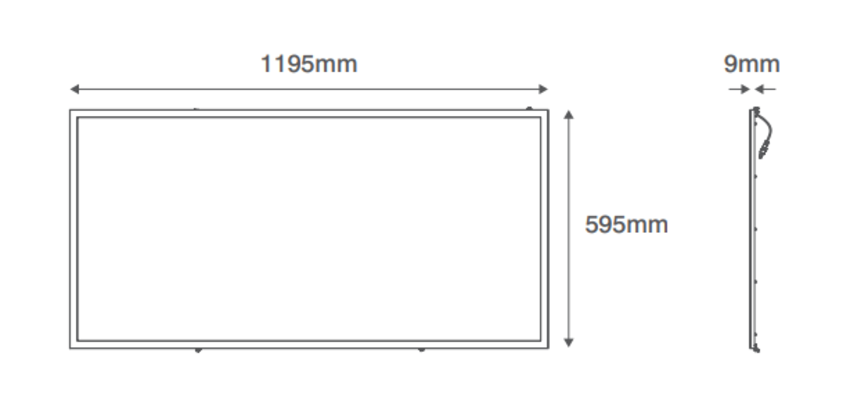

• Dimensions: 1195mm (L) x 595mm (W) x 9mm (D)
• Materials: Frame: Powdercoated Aluminium. Diffuser: Polycarbonate. Light Guide Plate (LGP): PMMA
• Finish: White (RAL 9003)
• Product Weight: 5.1Kg
• Dimmable: Yes (DALI, Switch Dim, 1-10V, 10V PWM)
• Ingress Protection: IP44
• Flammability Rating: TP(a)
• Warranty 5 years

Supply & Power Information

• Input Voltage & Frequency 220-240V~ 50/60Hz
• Electrical Safety Class II (Double Insulated)
• Circuit Wattage 50W
• Input Current 221mA
• In-rush Current <30A(Twidth=120us measured at 50% Ipeak) @
  230Vac
• Power Factor >0.9
• Ambient Temperature (Ta) -20°C - +40°C
• Critical Temperature +75°C

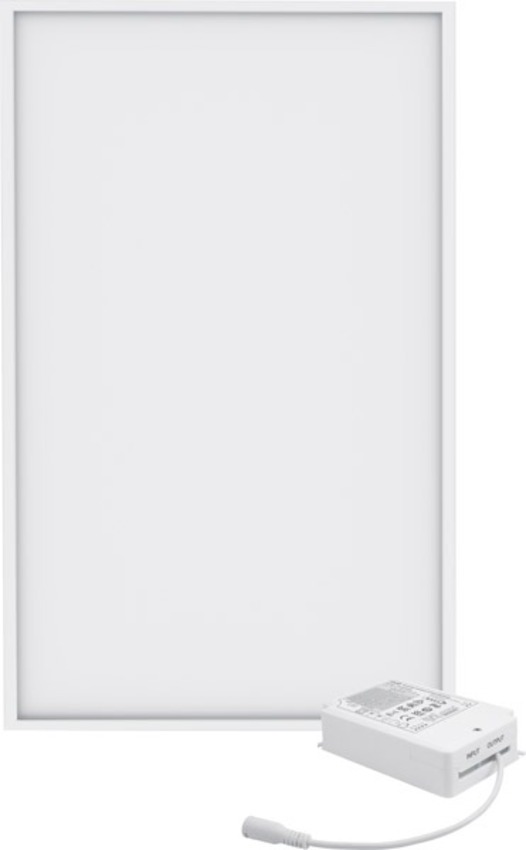

• LED Driver: Remote 3 In 1 Multi-Function Driver Supplied
• Input Terminations: Push-fit Terminals

Luminaire Output

• Colour Temperature (K) 4000
• Colour Render Index (CRI) >80
• Typical Luminous Flux (lm) 5250
• Efficacy (lm/W) 105

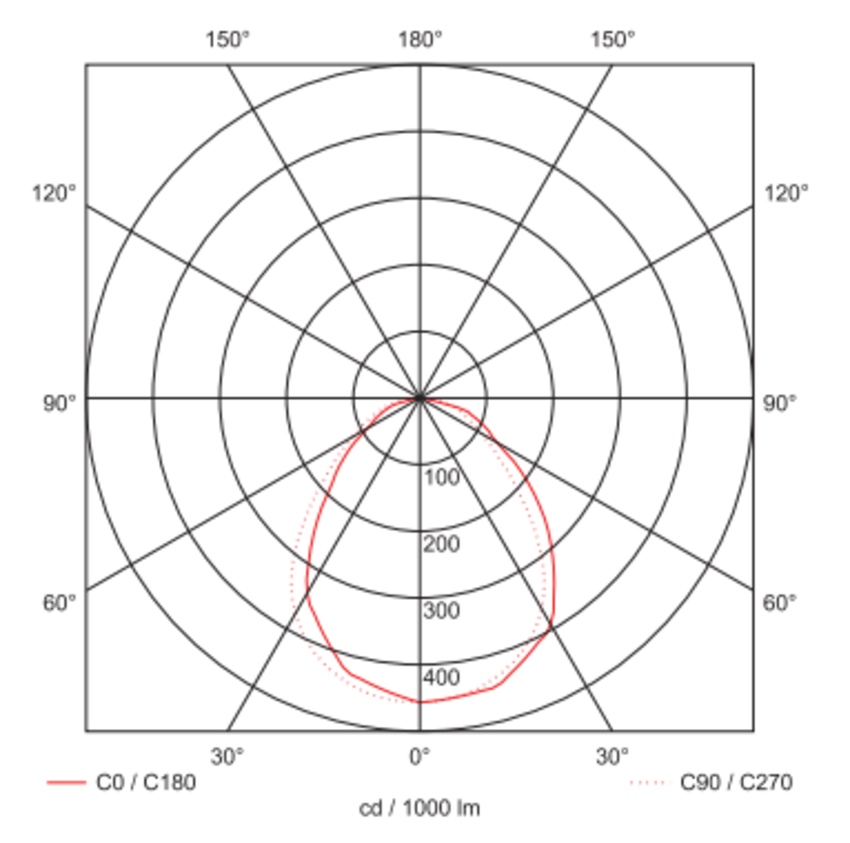

• Beam Angle (°) 90
• Unified Glare Rating (UGR) <19
• Flicker Free
• LED Lifetime (L70) 60,000 Hours

Dimming Facility

• Control Type: Switch Dim Using Retractive Switch(es)
• Switch Dim Voltage: 230V~ input to driver
• Control Arrangement Short Press: ON / OFF; Press & Hold: DIM
• Control Type DALI / 1-10V / 10V PWM Dimming
• 1-10V Parameters: Upto 16 drivers with 20 metres maximum between drivers
• 1-10V Dimming Information: An additional isolation switch will be required to turn the driver On and Off
• Control Type DALI
• DALI Control Line Voltage 9.5V to 22.5V
• Connectable Driver Up To 64 Drivers To One DALI Control Line
• Control Line Length (Max.);
• 100M Max. - 2 x 0.50mm².
• 150M Max. - 2 x 0.75mm²
• 200M Max. - 2 x 1.00mm²
• 300M Max. - 2 x 1.50mm²

Additional Information

• Suspension hooks pre-fitted to the back

Compatible Accessories

• OVEMCG50 3 Hour Emergency Pack
• OVSURF733 1200mm x 600mm Surface Frame Kit
• OVSUSP733 Suspension Wire Kit
