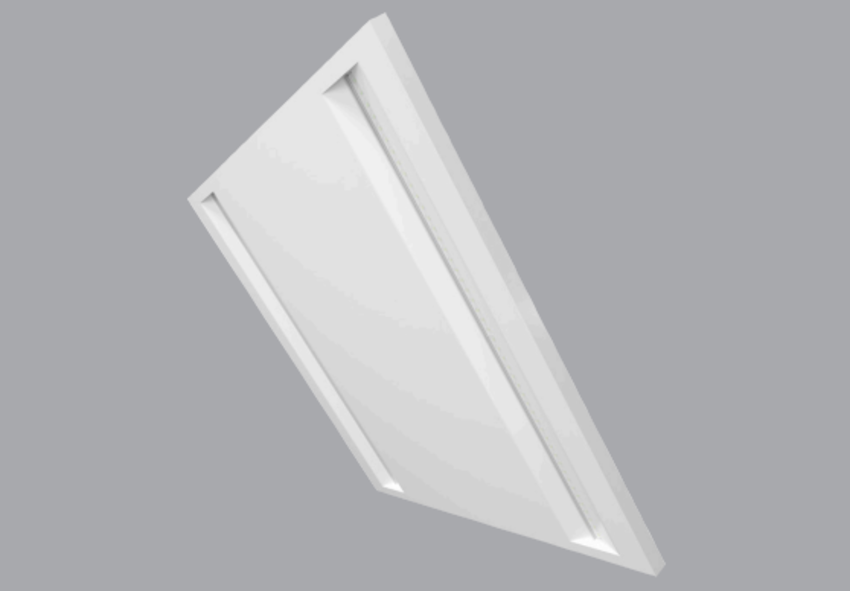

Ovia OV771361CWMF Inceptor Skylar 36W 600mm x 600mm 3 in 1 Dimmable Ultra Low-Glare LED Panel - 4000K - White

Ovia provides an extensive range of panel lighting and downlights for your commercial environment. They come with a range of multiple features and benefits, some including different colour temperature options.

The Inceptor® Skylar UGR16, Ultra Low Glare Panel Light.

General Information

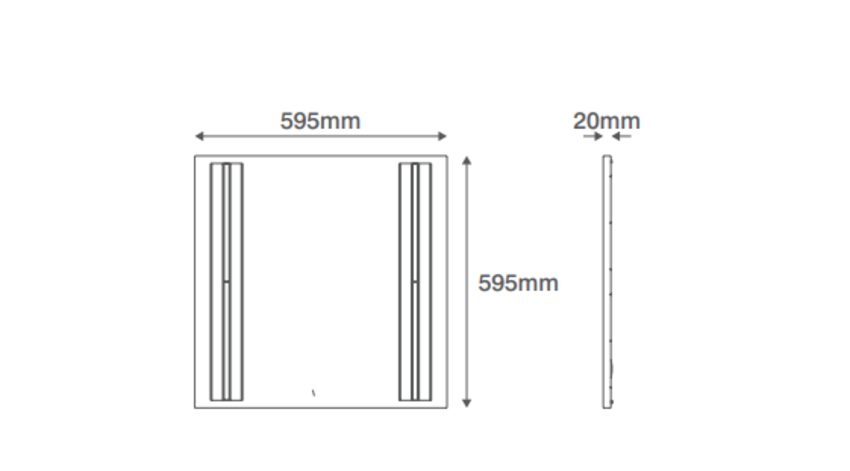

• Dimensions 595mm (L) x 595mm (W) x 20mm (D)
• Materials Frame: Powdercoated Steel. Diffuser: Polycarbonate. LED Tray: Powdercoated Steel.
• Finish: White (RAL 9003)
• Product Weight: 2.5Kg
• Dimmable: Yes (DALI, Switch Dim, 1-10V, 10V PWM)
• Ingress Protection IP20
• IK Rating: IK08
• Warranty 5 years

Supply & Power Information

• Input Voltage & Frequency 220-240V~ 50/60Hz
• Electrical Safety Class II (Double Insulated)
• Circuit Wattage 36W
• Input Current 125mA
• In-rush Current <30A(Twidth=120us measured at 50% Ipeak) @ 230Vac
• Power Factor >0.9
• Ambient Temperature (Ta) -20°C - +40°C
• Critical Temperature +75°C
• LED Driver: Remote 3 In 1 Multi-Function Driver Supplied
• Input Terminations: Push-fit Terminals

Luminaire Output

• Colour Temperature 4000K
• CRI >80
• Typical Luminous Flux 4320lm
• Efficacy 120lm/W

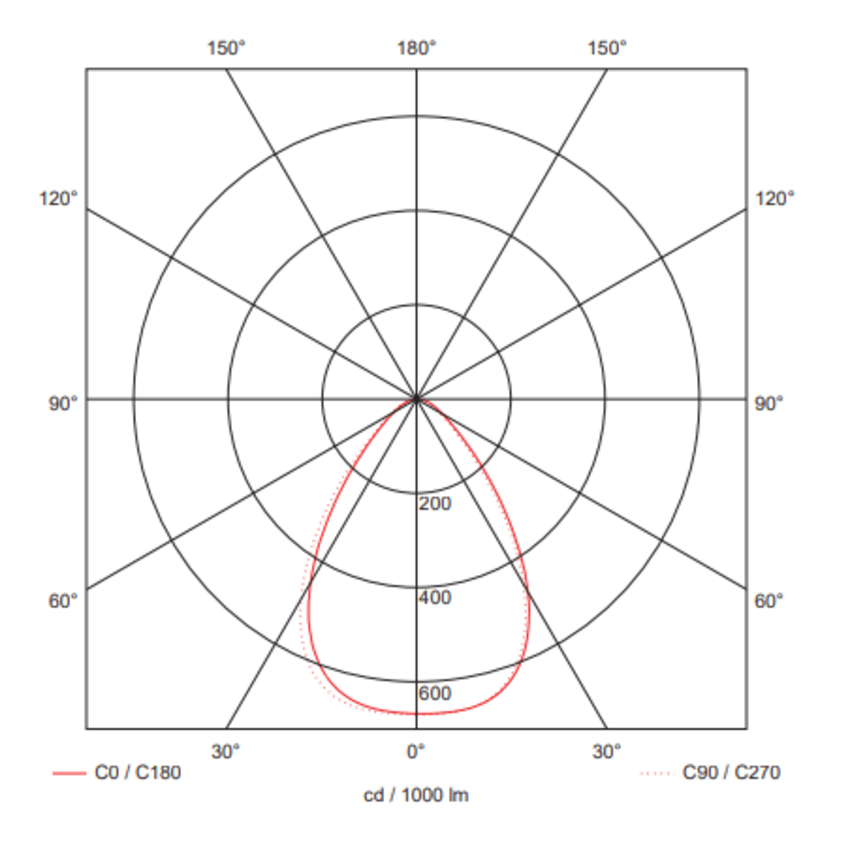

• Beam Angle 70°
• Unified Glare Rating (UGR) <16
• LED Lifetime (L70) 50,000 Hours
• Flicker Free Yes

Dimming Facility

• Control Type: Switch Dim Using Retractive Switch(es)
• Switch Dim Voltage: 230V~ input to driver
• Control Arrangement Short Press: ON / OFF; Press & Hold: DIM
• Control Type DALI / 1-10V / 10V PWM Dimming
• 1-10V Parameters: Upto 16 drivers with 20 metres maximum between drivers
• 1-10V Dimming Information: An additional isolation switch will be required to turn the driver On and Off
• Control Type DALI
• DALI Control Line Voltage 9.5V to 22.5V
• Connectable Driver Up To 64 Drivers To One DALI Control Line
• Control Line Length (Max.);
• 100M Max. - 2 x 0.50mm².
• 150M Max. - 2 x 0.75mm²
• 200M Max. - 2 x 1.00mm²
• 300M Max. - 2 x 1.50mm²

Additional Information

• Suspension hooks pre-fitted to the back

Compatible Accessories

• OVSUSP731 - Suspension Wire Kit
• OVREC731 - 600mm x 600mm Recess Frame Kit
• OVEMCG50 - 3 Hour Emergency Pack
