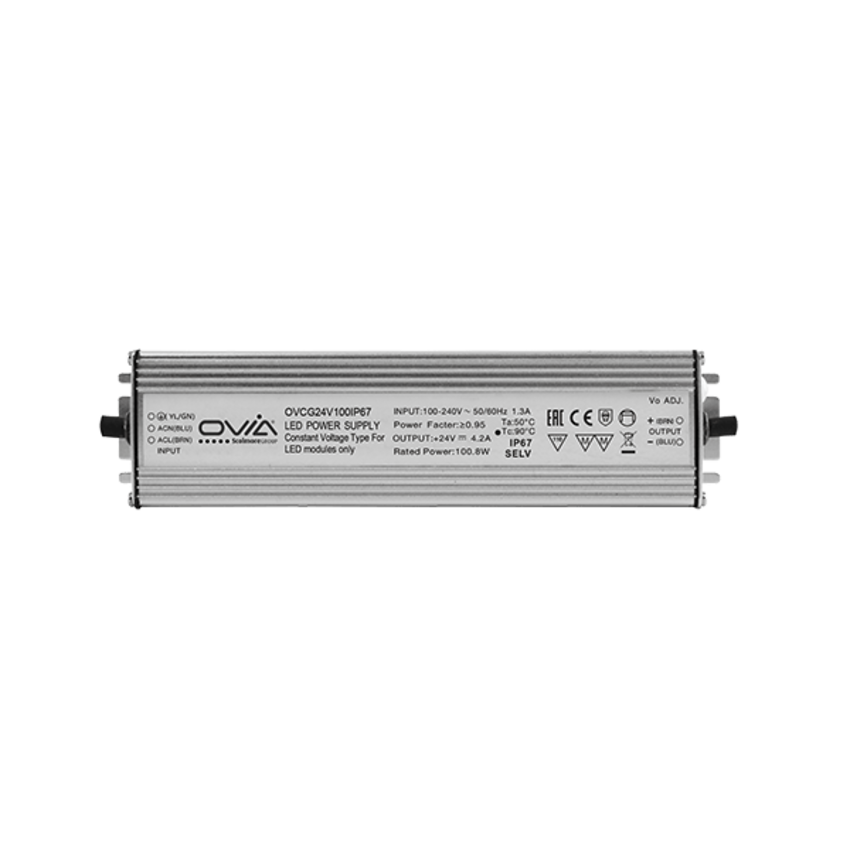

Ovia OVCG24V100IP67 Inceptor Intense 100W 24V Constant Voltage LED Driver

Product CodeOVCG24V100IP67

0 Reviews

Write Review

View The Range

£40.88 inc. VAT

£34.06 exc. VAT

Ovia's Inceptor Intense Range- Accessories. General Information Dimensions: 201mm (L) x 53mm (W) x 31.5mm (D) Materials: Housing: Aluminium Finish: Aluminium Product Weight 0.56Kg Non- Dimma ... Read More

Quantity

Total

£40.88 inc. VAT

Add to Cart

Ovia OVCG24V100IP67 Inceptor Intense 100W 24V Constant Voltage LED Driver Description

Ovia's Inceptor Intense Range- Accessories.

General Information

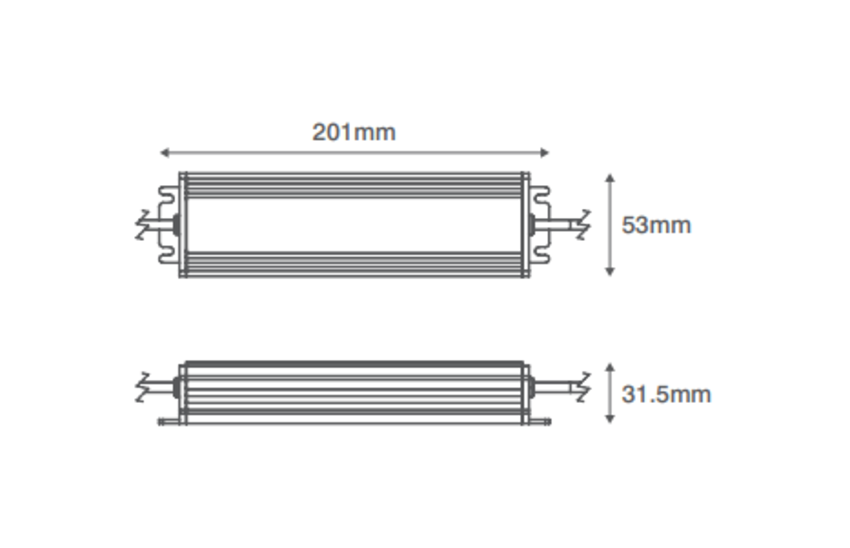

Dimensions: 201mm (L) x 53mm (W) x 31.5mm (D)
Materials: Housing: Aluminium
Finish: Aluminium
Product Weight 0.56Kg
Non- Dimmable
Ingress Protection IP67
Warranty 5 Years

Supply & Power

Input Voltage & Frequency 100-277V~ 50/60Hz
Electrical Safety Class I
Rated Power 100W Max.
Ambient Temperature (Ta) -25°C - +50°C
Critical Temperature +90°C
Cable Size 300mm x 3G 1.0mm² H05RN-F
Input Terminations: Pre-wired Cables, Stripped With Tinned Ends

Input Information

Input Current 0.6A
Power Factor ≥0.95
16A Circuit Breaker Type B: 4
Inrush Current 60A/<0.8mS

Output Information

Output Voltage 24V DC
Output Current 0-4200A
Output Power (Max.) 100.8W
Efficiency ≥91%

Protection

Short Circuit Protection: Hiccup, Auto recovery. The output recovers when short circuit is removed
Over Current Protection: Hiccup, Auto recovery
Over Voltage: Hiccup, Auto recovery
Over Temperature: Hiccup, Auto recovery
Insulation Resistance: 3.75KVac/5mA/60S Primary to Secondary, 1.5KVac/5mA/60S Primary to Earth
Insulation Resistance: >100M Ohm @ 500VDC Primary to Earth
Flicker Free: Yes
