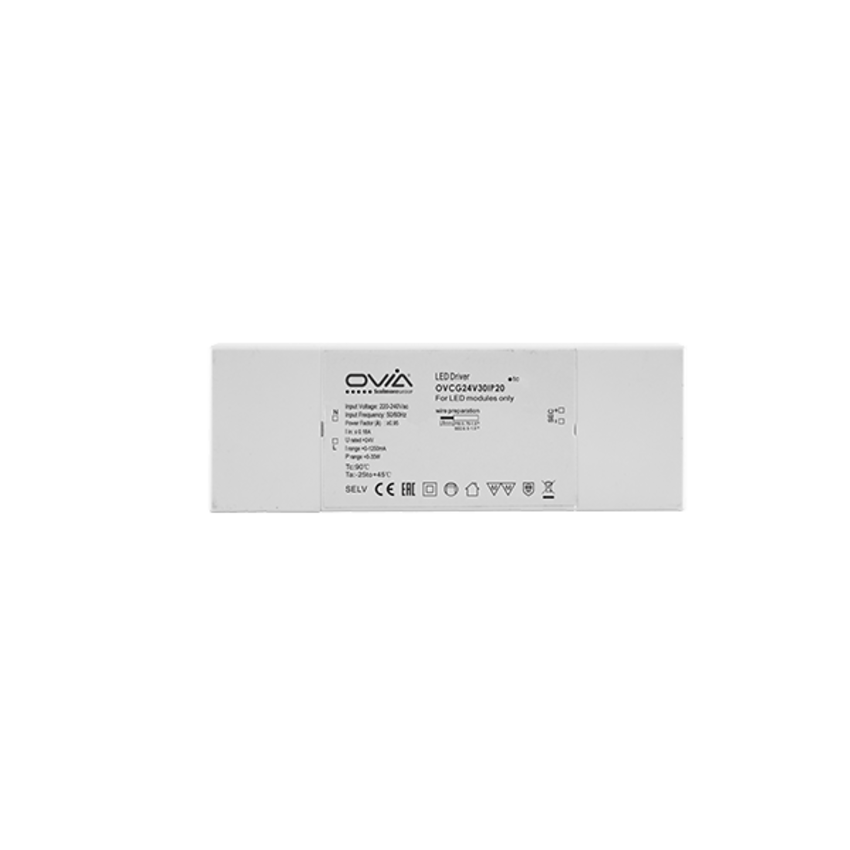

Ovia OVCG24V30IP20 Inceptor Intense 30W 24V Constant Voltage LED Driver

Product CodeOVCG24V30IP20

0 Reviews

Write Review

View The Range

£13.88 inc. VAT

£11.56 exc. VAT

Ovia's Inceptor Intense Range- Accessories. General Information Dimensions: 170mm (L) x 57mm (W) x 18mm (D) Materials: Housing: Polycarbonate Finish: White Product Weight 0.15Kg Non- Dimmabl ... Read More

Quantity

Total

£13.88 inc. VAT

Add to Cart

Ovia OVCG24V30IP20 Inceptor Intense 30W 24V Constant Voltage LED Driver Description

Ovia's Inceptor Intense Range- Accessories.

General Information

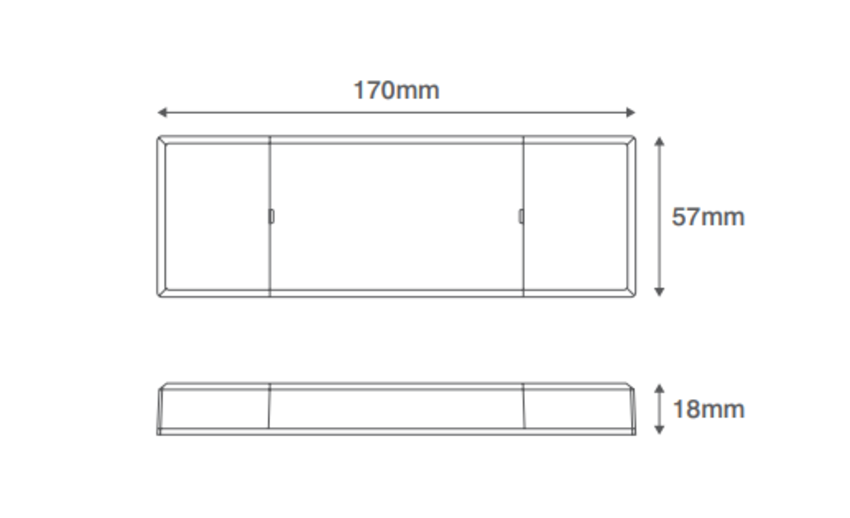

Dimensions: 170mm (L) x 57mm (W) x 18mm (D)
Materials: Housing: Polycarbonate
Finish: White
Product Weight 0.15Kg
Non- Dimmable
Ingress Protection IP20
Warranty 5 Years

Supply & Power

Input Voltage & Frequency 220-240V~ 50/60Hz
Electrical Safety Class II (Double Insulated)
Rated Power 30W Max.
Ambient Temperature (Ta) -25°C - +45°C
Critical Temperature +90°C
Cable Size:0.75mm²-1.5mm² (Input)
Input Terminations: Push-fit Terminals

Input Information

Input Current ≤21mA
Input Power <36W
Power Factor ≥0.92
16A Circuit Breaker Type B: 35
Inrush Current <35A/280µs

Output Information

Output Voltage 24V DC
Output Current 0-1250mA
Output Power (Max.) 30W
Efficiency ≥85%

Protection

Short Circuit Protection: Auto Recovery
Overload Protection: Auto Recovery
No Load Voltage: Auto Recovery
Insulation Voltage 3000V 5mA 60S between P-S
Insulation Resistance >100M Ohm @ 500VDC
Leakage Current <250μA, I/P to PE @230V~ input
Flicker Free: Yes
