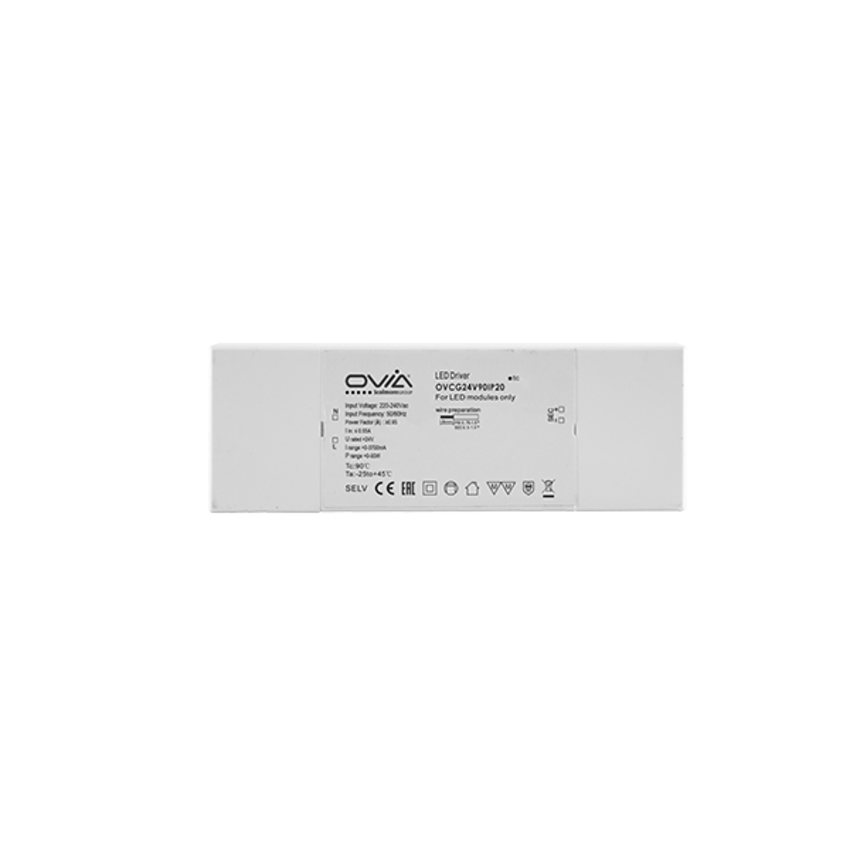

Ovia OVCG24V90IP20 Inceptor Intense 90W 24V Constant Voltage LED Driver

Product CodeOVCG24V90IP20

0 Reviews

Write Review

View The Range

£22.88 inc. VAT

£19.06 exc. VAT

Ovia's Inceptor Intense Range- Accessories. General Information Dimensions: 190mm (L) x 65mm (W) x 22mm (D) Materials: Housing: Polycarbonate Finish: White Product Weight 0.254Kg Non- Dimmab ... Read More

Quantity

Total

£22.88 inc. VAT

Add to Cart

Ovia OVCG24V90IP20 Inceptor Intense 90W 24V Constant Voltage LED Driver Description

Ovia's Inceptor Intense Range- Accessories.

General Information

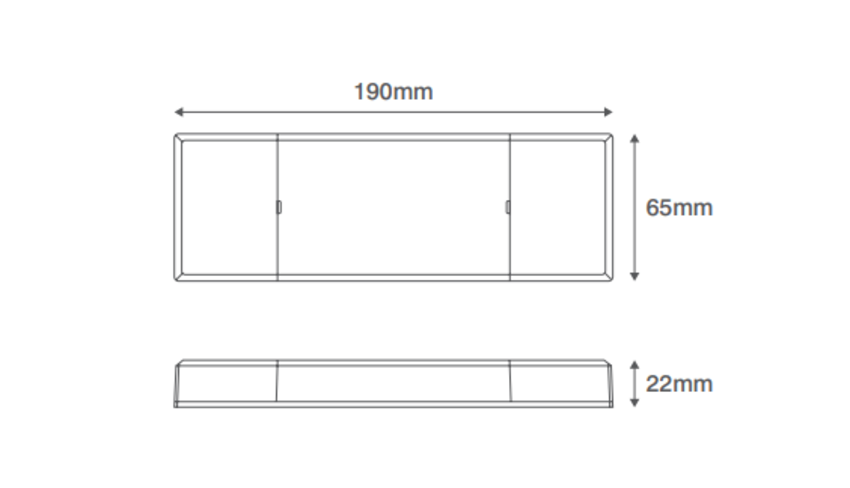

Dimensions: 190mm (L) x 65mm (W) x 22mm (D)
Materials: Housing: Polycarbonate
Finish: White
Product Weight 0.254Kg
Non- Dimmable
Ingress Protection IP20
Warranty 5 Years

Supply & Power

Input Voltage & Frequency 220-240V~ 50/60Hz
Electrical Safety Class II (Double Insulated)
Rated Power 90W Max.
Ambient Temperature (Ta) -25°C - +45°C
Critical Temperature +90°C
Cable Size:0.75mm²-1.5mm² (Input)
Input Terminations: Push-fit Terminals

Input Information

Input Current ≤55mA
Input Power <100W
Power Factor ≥0.95
16A Circuit Breaker Type B: 10
Inrush Current <50A/280µs

Output Information

Output Voltage 24V DC
Output Current 0-3750mA
Output Power (Max.) 90W
Efficiency ≥90%

Protection

Short Circuit Protection: Auto Recovery
Overload Protection: Auto Recovery
No Load Voltage: Auto Recovery
Insulation Voltage 3000V 5mA 60S between P-S
Insulation Resistance >100M Ohm @ 500VDC
Leakage Current <250μA, I/P to PE @230V~ input
Flicker Free: Yes
